D8YU ベルトサイズ一覧表

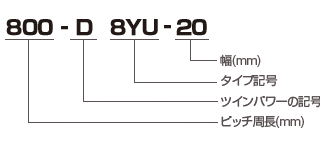

呼称例

呼称例

更新日:2020.03.25

サイズ追加

呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数
512 – D8YU512.00641072 – D8YU1072.001341656 – D8YU1656.00207
520 – D8YU520.00651080 – D8YU1080.001351680 – D8YU1680.00210
536 – D8YU536.00671088 – D8YU1088.001361688 – D8YU1688.00211
544 – D8YU544.00681096 – D8YU1096.001371696 – D8YU1696.00212
552 – D8YU552.00691112 – D8YU1112.001391720 – D8YU1720.00215
560 – D8YU560.00701120 – D8YU1120.001401728 – D8YU1728.00216
576 – D8YU576.00721128 – D8YU1128.001411736 – D8YU1736.00217
600 – D8YU600.00751136 – D8YU1136.001421752 – D8YU1752.00219
608 – D8YU608.00761144 – D8YU1144.001431760 – D8YU1760.00220
616 – D8YU616.00771152 – D8YU1152.001441768 – D8YU1768.00221
624 – D8YU624.00781160 – D8YU1160.001451776 – D8YU1776.00222
632 – D8YU632.00791168 – D8YU1168.001461784 – D8YU1784.00223
640 – D8YU640.00801176 – D8YU1176.001471800 – D8YU1800.00225
656 – D8YU656.00821184 – D8YU1184.001481808 – D8YU1808.00226
664 – D8YU664.00831192 – D8YU1192.001491816 – D8YU1816.00227
680 – D8YU680.00851200 – D8YU1200.001501824 – D8YU1824.00228
704 – D8YU704.00881208 – D8YU1208.001511856 – D8YU1856.00232
720 – D8YU720.00901216 – D8YU1216.001521864 – D8YU1864.00233
728 – D8YU728.00911224 – D8YU1224.001531872 – D8YU1872.00234
744 – D8YU744.00931232 – D8YU1232.001541888 – D8YU1888.00236
752 – D8YU752.00941240 – D8YU1240.001551896 – D8YU1896.00237
760 – D8YU760.00951248 – D8YU1248.001561904 – D8YU1904.00238
768 – D8YU768.00961256 – D8YU1256.001571912 – D8YU1912.00239
776 – D8YU776.00971264 – D8YU1264.001581928 – D8YU1928.00241
784 – D8YU784.00981272 – D8YU1272.001591944 – D8YU1944.00243
792 – D8YU792.00991280 – D8YU1280.001601952 – D8YU1952.00244
800 – D8YU800.001001288 – D8YU1288.001611976 – D8YU1976.00247
808 – D8YU808.001011296 – D8YU1296.001622000 – D8YU2000.00250
816 – D8YU816.001021304 – D8YU1304.001632056 – D8YU2056.00257
呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数
824 – D8YU824.001031312 – D8YU1312.001642072 – D8YU2072.00259
832 – D8YU832.001041320 – D8YU1320.001652120 – D8YU2120.00265
840 – D8YU840.001051328 – D8YU1328.001662136 – D8YU2136.00267
848 – D8YU848.001061336 – D8YU1336.001672160 – D8YU2160.00270
856 – D8YU856.001071344 – D8YU1344.001682240 – D8YU2240.00280
864 – D8YU864.001081352 – D8YU1352.001692248 – D8YU2248.00281
872 – D8YU872.001091360 – D8YU1360.001702264 – D8YU2264.00283
880 – D8YU880.001101376 – D8YU1376.001722280 – D8YU2280.00285
888 – D8YU888.001111384 – D8YU1384.001732296 – D8YU2296.00287
896 – D8YU896.001121392 – D8YU1392.001742304 – D8YU2304.00288
904 – D8YU904.001131400 – D8YU1400.001752328 – D8YU2328.00291
912 – D8YU912.001141408 – D8YU1408.001762368 – D8YU2368.00296
920 – D8YU920.001151416 – D8YU1416.001772400 – D8YU2400.00300
928 – D8YU928.001161424 – D8YU1424.001782456 – D8YU2456.00307
936 – D8YU936.001171432 – D8YU1432.001792600 – D8YU2600.00325
944 – D8YU944.001181440 – D8YU1440.001802712 – D8YU2712.00339
952 – D8YU952.001191448 – D8YU1448.001812768 – D8YU2768.00346
960 – D8YU960.001201456 – D8YU1456.001822800 – D8YU2800.00350
968 – D8YU968.001211464 – D8YU1464.001832944 – D8YU2944.00368
976 – D8YU976.001221480 – D8YU1480.001853144 – D8YU3144.00393
984 – D8YU984.001231496 – D8YU1496.001873200 – D8YU3200.00400
992 – D8YU992.001241520 – D8YU1520.001903440 – D8YU3440.00430
1000 – D8YU1000.001251544 – D8YU1544.001933600 – D8YU3600.00450
1008 – D8YU1008.001261568 – D8YU1568.001963848 – D8YU3848.00481
1016 – D8YU1016.001271576 – D8YU1576.001973920 – D8YU3920.00490
1032 – D8YU1032.001291600 – D8YU1600.002004400 – D8YU4400.00550
1040 – D8YU1040.001301608 – D8YU1608.00201
1056 – D8YU1056.001321616 – D8YU1616.00202
1064 – D8YU1064.001331640 – D8YU1640.00205
