D8M ベルトサイズ一覧表

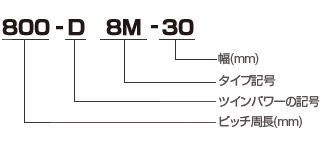

呼称例

呼称例

更新日:2020.03.25

サイズ追加

呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数
424 – D8M424.00531120 – D8M1120.001401800 – D8M1800.00225
480 – D8M480.00601152 – D8M1152.001441904 – D8M1904.00238
560 – D8M560.00701184 – D8M1184.001481936 – D8M1936.00242
584 – D8M584.00731192 – D8M1192.001492000 – D8M2000.00250
600 – D8M600.00751200 – D8M1200.001502056 – D8M2056.00257
640 – D8M640.00801248 – D8M1248.001562104 – D8M2104.00263
680 – D8M680.00851264 – D8M1264.001582160 – D8M2160.00270
720 – D8M720.00901280 – D8M1280.001602240 – D8M2240.00280
760 – D8M760.00951304 – D8M1304.001632272 – D8M2272.00284
800 – D8M800.001001320 – D8M1320.001652400 – D8M2400.00300
840 – D8M840.001051360 – D8M1360.001702504 – D8M2504.00313
856 – D8M856.001071392 – D8M1392.001742600 – D8M2600.00325
880 – D8M880.001101400 – D8M1400.001752800 – D8M2800.00350
896 – D8M896.001121424 – D8M1424.001783048 – D8M3048.00381
920 – D8M920.001151440 – D8M1440.001803200 – D8M3200.00400
960 – D8M960.001201480 – D8M1480.001853280 – D8M3280.00410
1000 – D8M1000.001251520 – D8M1520.001903360 – D8M3360.00420
1040 – D8M1040.001301600 – D8M1600.002003600 – D8M3600.00450
1056 – D8M1056.001321680 – D8M1680.002103824 – D8M3824.00478
1080 – D8M1080.001351760 – D8M1760.00220
