8M ベルトサイズ一覧表

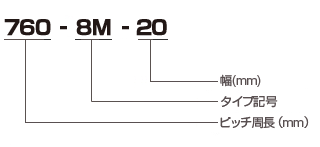

呼称例

呼称例

更新日:2020.03.25

呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数
416 – 8M416.00521120 – 8M1120.001401904 – 8M1904.00238
424 – 8M424.00531152 – 8M1152.001441936 – 8M1936.00242
480 – 8M480.00601184 – 8M1184.001482000 – 8M2000.00250
560 – 8M560.00701192 – 8M1192.001492056 – 8M2056.00257
584 – 8M584.00731200 – 8M1200.001502104 – 8M2104.00263
600 – 8M600.00751248 – 8M1248.001562160 – 8M2160.00270
640 – 8M640.00801264 – 8M1264.001582240 – 8M2240.00280
680 – 8M680.00851280 – 8M1280.001602272 – 8M2272.00284
720 – 8M720.00901304 – 8M1304.001632400 – 8M2400.00300
760 – 8M760.00951320 – 8M1320.001652504 – 8M2504.00313
800 – 8M800.001001360 – 8M1360.001702600 – 8M2600.00325
840 – 8M840.001051392 – 8M1392.001742800 – 8M2800.00350
856 – 8M856.001071400 – 8M1400.001753048 – 8M3048.00381
880 – 8M880.001101424 – 8M1424.001783200 – 8M3200.00400
896 – 8M896.001121440 – 8M1440.001803280 – 8M3280.00410
920 – 8M920.001151480 – 8M1480.001853360 – 8M3360.00420
960 – 8M960.001201520 – 8M1520.001903600 – 8M3600.00450
1000 – 8M1000.001251600 – 8M1600.002003824 – 8M3824.00478
1040 – 8M1040.001301680 – 8M1680.002104400 – 8M4400.00550
1056 – 8M1056.001321760 – 8M1760.00220
1080 – 8M1080.001351800 – 8M1800.00225
