8YU ベルトサイズ一覧表

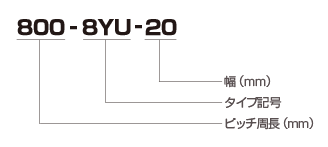

呼称例
※8YUの標準仕様は、生産を終了しました。
8mmピッチの標準仕様ベルトをご用命の際はEVベルトにてご検討ください。
GTベルト:8YUは、特殊仕様品のみ生産しております。
更新日:2021.06.29
呼称 | ピッチ周長(mm) | 歯数 | 呼称 | ピッチ周長(mm) | 歯数 | 呼称 | ピッチ周長(mm) | 歯数 | |||
312 – 8YU | 312.00 | 39 | 1000 – 8YU | 1000.00 | 125 | 1616 – 8YU | 1616.00 | 202 | |||
328 – 8YU | 328.00 | 41 | 1008 – 8YU | 1008.00 | 126 | 1640 – 8YU | 1640.00 | 205 | |||
344 – 8YU | 344.00 | 43 | 1016 – 8YU | 1016.00 | 127 | 1656 – 8YU | 1656.00 | 207 | |||
408 – 8YU | 408.00 | 51 | 1032 – 8YU | 1032.00 | 129 | 1680 – 8YU | 1680.00 | 210 | |||
416 – 8YU | 416.00 | 52 | 1040 – 8YU | 1040.00 | 130 | 1688 – 8YU | 1688.00 | 211 | |||
432 – 8YU | 432.00 | 54 | 1056 – 8YU | 1056.00 | 132 | 1696 – 8YU | 1696.00 | 212 | |||
440 – 8YU | 440.00 | 55 | 1064 – 8YU | 1064.00 | 133 | 1720 – 8YU | 1720.00 | 215 | |||
464 – 8YU | 464.00 | 58 | 1072 – 8YU | 1072.00 | 134 | 1728 – 8YU | 1728.00 | 216 | |||
472 – 8YU | 472.00 | 59 | 1080 – 8YU | 1080.00 | 135 | 1736 – 8YU | 1736.00 | 217 | |||
480 – 8YU | 480.00 | 60 | 1088 – 8YU | 1088.00 | 136 | 1752 – 8YU | 1752.00 | 219 | |||
488 – 8YU | 488.00 | 61 | 1096 – 8YU | 1096.00 | 137 | 1760 – 8YU | 1760.00 | 220 | |||
504 – 8YU | 504.00 | 63 | 1112 – 8YU | 1112.00 | 139 | 1768 – 8YU | 1768.00 | 221 | |||
512 – 8YU | 512.00 | 64 | 1120 – 8YU | 1120.00 | 140 | 1776 – 8YU | 1776.00 | 222 | |||
520 – 8YU | 520.00 | 65 | 1128 – 8YU | 1128.00 | 141 | 1784 – 8YU | 1784.00 | 223 | |||
536 – 8YU | 536.00 | 67 | 1136 – 8YU | 1136.00 | 142 | 1800 – 8YU | 1800.00 | 225 | |||
544 – 8YU | 544.00 | 68 | 1144 – 8YU | 1144.00 | 143 | 1808 – 8YU | 1808.00 | 226 | |||
552 – 8YU | 552.00 | 69 | 1152 – 8YU | 1152.00 | 144 | 1816 – 8YU | 1816.00 | 227 | |||
560 – 8YU | 560.00 | 70 | 1160 – 8YU | 1160.00 | 145 | 1824 – 8YU | 1824.00 | 228 | |||
576 – 8YU | 576.00 | 72 | 1168 – 8YU | 1168.00 | 146 | 1856 – 8YU | 1856.00 | 232 | |||
600 – 8YU | 600.00 | 75 | 1176 – 8YU | 1176.00 | 147 | 1864 – 8YU | 1864.00 | 233 | |||
608 – 8YU | 608.00 | 76 | 1184 – 8YU | 1184.00 | 148 | 1872 – 8YU | 1872.00 | 234 | |||
呼称 | ピッチ周長(mm) | 歯数 | 呼称 | ピッチ周長(mm) | 歯数 | 呼称 | ピッチ周長(mm) | 歯数 | |||
616 – 8YU | 616.00 | 77 | 1192 – 8YU | 1192.00 | 149 | 1888 – 8YU | 1888.00 | 236 | |||
624 – 8YU | 624.00 | 78 | 1200 – 8YU | 1200.00 | 150 | 1896 – 8YU | 1896.00 | 237 | |||
632 – 8YU | 632.00 | 79 | 1208 – 8YU | 1208.00 | 151 | ★ | 1904 – 8YU | 1904.00 | 238 | ||
640 – 8YU | 640.00 | 80 | 1216 – 8YU | 1216.00 | 152 | 1912 – 8YU | 1912.00 | 239 | |||
656 – 8YU | 656.00 | 82 | 1224 – 8YU | 1224.00 | 153 | 1928 – 8YU | 1928.00 | 241 | |||
664 – 8YU | 664.00 | 83 | 1232 – 8YU | 1232.00 | 154 | 1944 – 8YU | 1944.00 | 243 | |||
680 – 8YU | 680.00 | 85 | 1240 – 8YU | 1240.00 | 155 | 1952 – 8YU | 1952.00 | 244 | |||
704 – 8YU | 704.00 | 88 | 1248 – 8YU | 1248.00 | 156 | 1976 – 8YU | 1976.00 | 247 | |||
720 – 8YU | 720.00 | 90 | 1256 – 8YU | 1256.00 | 157 | 2000 – 8YU | 2000.00 | 250 | |||
728 – 8YU | 728.00 | 91 | 1264 – 8YU | 1264.00 | 158 | 2056 – 8YU | 2056.00 | 257 | |||
744 – 8YU | 744.00 | 93 | 1272 – 8YU | 1272.00 | 159 | 2072 – 8YU | 2072.00 | 259 | |||
752 – 8YU | 752.00 | 94 | 1280 – 8YU | 1280.00 | 160 | 2120 – 8YU | 2120.00 | 265 | |||
760 – 8YU | 760.00 | 95 | 1288 – 8YU | 1288.00 | 161 | 2136 – 8YU | 2136.00 | 267 | |||
768 – 8YU | 768.00 | 96 | 1296 – 8YU | 1296.00 | 162 | 2160 – 8YU | 2160.00 | 270 | |||
776 – 8YU | 776.00 | 97 | 1304 – 8YU | 1304.00 | 163 | 2240 – 8YU | 2240.00 | 280 | |||
784 – 8YU | 784.00 | 98 | 1312 – 8YU | 1312.00 | 164 | 2248 – 8YU | 2248.00 | 281 | |||
792 – 8YU | 792.00 | 99 | 1320 – 8YU | 1320.00 | 165 | 2264 – 8YU | 2264.00 | 283 | |||
800 – 8YU | 800.00 | 100 | 1328 – 8YU | 1328.00 | 166 | 2280 – 8YU | 2280.00 | 285 | |||
808 – 8YU | 808.00 | 101 | 1336 – 8YU | 1336.00 | 167 | 2296 – 8YU | 2296.00 | 287 | |||
816 – 8YU | 816.00 | 102 | 1344 – 8YU | 1344.00 | 168 | 2304 – 8YU | 2304.00 | 288 | |||
824 – 8YU | 824.00 | 103 | 1352 – 8YU | 1352.00 | 169 | 2328 – 8YU | 2328.00 | 291 | |||
呼称 | ピッチ周長(mm) | 歯数 | 呼称 | ピッチ周長(mm) | 歯数 | 呼称 | ピッチ周長(mm) | 歯数 | |||
832 – 8YU | 832.00 | 104 | 1360 – 8YU | 1360.00 | 170 | 2368 – 8YU | 2368.00 | 296 | |||
840 – 8YU | 840.00 | 105 | 1376 – 8YU | 1376.00 | 172 | 2400 – 8YU | 2400.00 | 300 | |||
848 – 8YU | 848.00 | 106 | 1384 – 8YU | 1384.00 | 173 | 2456 – 8YU | 2456.00 | 307 | |||
856 – 8YU | 856.00 | 107 | 1392 – 8YU | 1392.00 | 174 | 2600 – 8YU | 2600.00 | 325 | |||
864 – 8YU | 864.00 | 108 | 1400 – 8YU | 1400.00 | 175 | ★ | 2712 – 8YU | 2712.00 | 339 | ||
872 – 8YU | 872.00 | 109 | 1408 – 8YU | 1408.00 | 176 | ★ | 2768 – 8YU | 2768.00 | 346 | ||
880 – 8YU | 880.00 | 110 | 1416 – 8YU | 1416.00 | 177 | 2800 – 8YU | 2800.00 | 350 | |||
888 – 8YU | 888.00 | 111 | 1424 – 8YU | 1424.00 | 178 | ★ | 2944 – 8YU | 2944.00 | 368 | ||
896 – 8YU | 896.00 | 112 | 1432 – 8YU | 1432.00 | 179 | ★ | 3144 – 8YU | 3144.00 | 393 | ||
904 – 8YU | 904.00 | 113 | 1440 – 8YU | 1440.00 | 180 | 3200 – 8YU | 3200.00 | 400 | |||
912 – 8YU | 912.00 | 114 | 1448 – 8YU | 1448.00 | 181 | 3440 – 8YU | 3440.00 | 430 | |||
920 – 8YU | 920.00 | 115 | 1456 – 8YU | 1456.00 | 182 | 3600 – 8YU | 3600.00 | 450 | |||
928 – 8YU | 928.00 | 116 | 1464 – 8YU | 1464.00 | 183 | ★ | 3848 – 8YU | 3848.00 | 481 | ||
936 – 8YU | 936.00 | 117 | 1480 – 8YU | 1480.00 | 185 | ★ | 4400 – 8YU | 4400.00 | 550 | ||
944 – 8YU | 944.00 | 118 | 1496 – 8YU | 1496.00 | 187 | ★ | 5008 – 8YU | 5008.00 | 626 | ||
952 – 8YU | 952.00 | 119 | 1520 – 8YU | 1520.00 | 190 | ||||||
960 – 8YU | 960.00 | 120 | 1544 – 8YU | 1544.00 | 193 | ||||||
968 – 8YU | 968.00 | 121 | 1568 – 8YU | 1568.00 | 196 | ||||||
976 – 8YU | 976.00 | 122 | 1576 – 8YU | 1576.00 | 197 | ||||||
984 – 8YU | 984.00 | 123 | 1600 – 8YU | 1600.00 | 200 | ||||||
992 – 8YU | 992.00 | 124 | 1608 – 8YU | 1608.00 | 201 |
