1.5GT ベルトサイズ一覧表

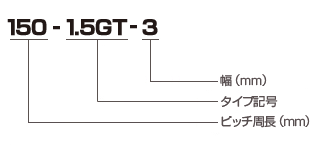

呼称例

呼称例

更新日:2020.03.25

サイズ追加

呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数
40.5 – 1.5GT40.5027168 - 1.5GT168.00112360 - 1.5GT360.00240
45 - 1.5GT45.0030174 - 1.5GT174.00116364.5 - 1.5GT364.50243
48 - 1.5GT48.0032175.5 – 1.5GT175.50117366 - 1.5GT366.00244
51 - 1.5GT51.0034178.5 – 1.5GT178.50119373.5 – 1.5GT373.50249
61.5 – 1.5GT61.5041181.5 – 1.5GT181.50121384 - 1.5GT384.00256
69 - 1.5GT69.0046184.5 – 1.5GT184.50123390 - 1.5GT390.00260
70.5 – 1.5GT70.5047186 - 1.5GT186.00124405 - 1.5GT405.00270
72 – 1.5GT72.0048189 - 1.5GT189.00126427.5 – 1.5GT427.50285
73.5 – 1.5GT73.5049190.5 – 1.5GT190.50127432 - 1.5GT432.00288
76.5 – 1.5GT76.5051195 - 1.5GT195.00130444 - 1.5GT444.00296
79.5 – 1.5GT79.5053199.5 – 1.5GT199.50133460.5 - 1.5GT460.50307
81 – 1.5GT81.0054202.5 – 1.5GT202.50135481.5 - 1.5GT481.50321
82.5 – 1.5GT82.5055204 - 1.5GT204.00136483 - 1.5GT483.00322
85.5 – 1.5GT85.5057207 - 1.5GT207.00138490.5 – 1.5GT490.50327
87 - 1.5GT87.0058210 - 1.5GT210.00140492 – 1.5GT492.00328
90 - 1.5GT90.0060213 - 1.5GT213.00142493.5 – 1.5GT493.50329
91.5 – 1.5GT91.5061216 - 1.5GT216.00144498 - 1.5GT498.00332
94.5 – 1.5GT94.5063217.5 – 1.5GT217.50145540 – 1.5GT540.00360
96 - 1.5GT96.0064219 - 1.5GT219.00146562.5 – 1.5GT562.50375
97.5 – 1.5GT97.5065225 - 1.5GT225.00150573 – 1.5GT573.00382
呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数
100.5 – 1.5GT100.5067228 - 1.5GT228.00152589.5 – 1.5GT589.50393
103.5 – 1.5GT103.5069231 - 1.5GT231.00154598.5 – 1.5GT598.50399
109.5 – 1.5GT109.5073232.5 – 1.5GT232.50155630 - 1.5GT630.00420
112.5 - 1.5GT112.5075240 - 1.5GT240.00160642 - 1.5GT642.00428
114 - 1.5GT114.0076246 - 1.5GT246.00164654 - 1.5GT654.00436
123 - 1.5GT123.0082249 - 1.5GT249.00166661.5 – 1.5GT661.50441
124.5 – 1.5GT124.5083252 - 1.5GT252.00168678 - 1.5GT678.00452
126 - 1.5GT126.0084258 - 1.5GT258.00172699 - 1.5GT699.00466
129 - 1.5GT129.0086267 - 1.5GT267.00178744 - 1.5GT744.00496
132 - 1.5GT132.0088279 - 1.5GT279.00186762 - 1.5GT762.00508
135 - 1.5GT135.0090292.5 – 1.5GT292.50195811.5 – 1.5GT811.50541
136.5 – 1.5GT136.5091303 – 1.5GT303.00202820.5 – 1.5GT820.50547
141 - 1.5GT141.0094304.5 – 1.5GT304.50203829.5 – 1.5GT829.50553
145.5 – 1.5GT145.5097315 - 1.5GT315.00210891 - 1.5GT891.00594
150 - 1.5GT150.00100316.5 – 1.5GT316.50211931.5 – 1.5GT931.50621
153 - 1.5GT153.00102321 - 1.5GT321.002141008 - 1.5GT1008.00672
156 - 1.5GT156.00104324 – 1.5GT324.00216
160.5 – 1.5GT160.50107330 - 1.5GT330.00220
163.5 – 1.5GT163.50109339 - 1.5GT339.00226
165 - 1.5GT165.00110348 - 1.5GT348.00232
