EV14M ベルトサイズ一覧表

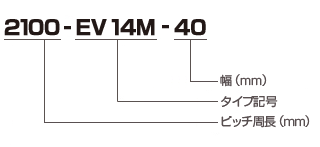

呼称例

呼称例

更新日:2020.03.25

呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数呼称ピッチ周長(mm)歯数
966-EV14M966.00691652-EV14M1652.001182590-EV14M2590.00185
1148-EV14M1148.00821680-EV14M1680.001202660-EV14M2660.00190
1190-EV14M1190.00851736-EV14M1736.001242800-EV14M2800.00200
1330-EV14M1330.00951778-EV14M1778.001272940-EV14M2940.00210
1344-EV14M1344.00961890-EV14M1890.001353150-EV14M3150.00225
1400-EV14M1400.001001932-EV14M1932.001383360-EV14M3360.00240
1456-EV14M1456.001041946-EV14M1946.001393500-EV14M3500.00250
1512-EV14M1512.001082002-EV14M2002.001433850-EV14M3850.00275
1540-EV14M1540.001102100-EV14M2100.001504004-EV14M4004.00286
1568-EV14M1568.001122198-EV14M2198.001574326-EV14M4326.00309
1610-EV14M1610.001152310-EV14M2310.00165
1638-EV14M1638.001172450-EV14M2450.00175
